Angle Joints

DIN 71802 Form B / BS with Rivet Pin

Angle Joints DIN 71802 Form B / BS with Rivet Pin
Variants
  • DIN 71802 Form B with Rivet Pin without Safety Clips
    Order Example: Angle Joints DIN 71802 B 10 x 4.5
  • DIN 71802 Form BS with Rivet Pin with Safety Clips
    Order Example: Angle Joints DIN 71802 BS 13 x 10
Materials Ball Cups
  • steel with a minimum tensile strength of Rm 500 N/mm²
  • stainless steel 1.4305 (303)
  • stainless steel 1.4571
Materials Ball Pins
  • steel with a minimum tensile strength of Rm 600 N/mm²
    ball hardened, degree of hardness at least 52 HRC or 550 HV 30, depth of hardening at least 1 mm
  • stainless steel 1.4305 (303)
  • stainless steel 1.4571
Surfaces
  • unplated
  • zinc plated
Optional Features
  • left-hand threaded ball cups; indication by LH
    e.g. BS 8 x 7,5 LH
  • easy moving version; indication by L
    e.g. BSL 10 x 8
  • ball cups hardened; indication by hardened
    e.g. BS 13 x 5 hardened
  • further special options available on request
Downloads
Data Sheet Angle Joints DIN 71802 Form B / BS with Rivet Pin

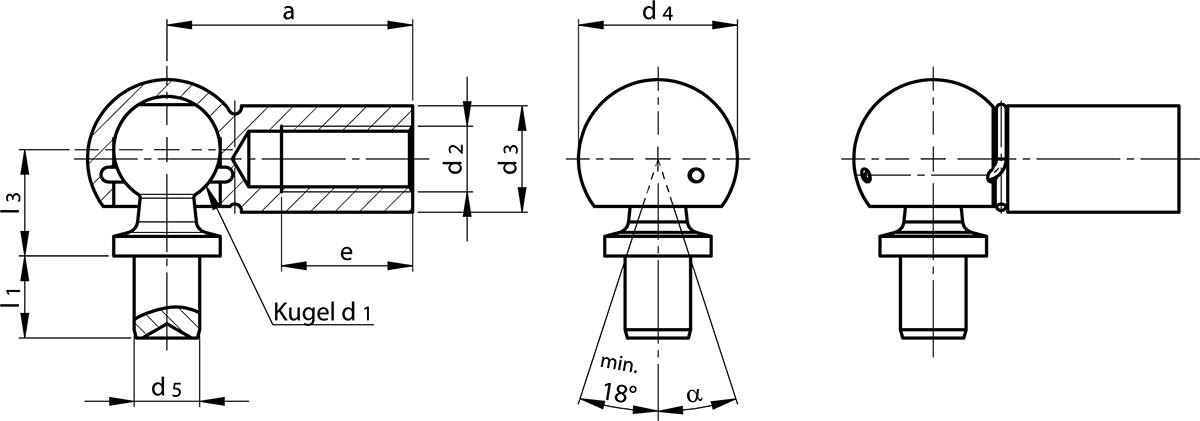

Dimensioned Drawing

Dimensioned Drawing Angle Joints DIN 71802 Form B / BS with Rivet Pin

Dimension Table

ball
d1
h9		 pin
length
l1
±0.2		 thread
d2

 a
±0.3
d3
±0.5
d4
±0.5
d5
h11
 e
min.
l3
±0.3
α

 weight
approx.
kg per 1000 pieces

6 3.5 M 4 22 7 10.6 4 10.2 8.5 - 9.20
(nur Form B)
8 4 M 5 22 8 12.8 5 10.2 9 10° 12.85
7.5 13.35
10 4.5 M 6 25 10 14.8 6 11.5 11 15° 21.30
8 22.00
13 5 M 8 30 13 19.3 8 14 13 15° 43.10
10 45.00
16 6 M 10
M 12		 35 16 24 10 15.5 16 15° 82.30
13 86.60
19 12 M 14 x 1.5
M 14
M 16		 45 22 30 14 21.5 20 15° 181.00
18 188.70
