for Angle Joints acc. DIN 71802

Variants

• protection caps
  Order Example: protection caps DK 13 (protection caps loose)

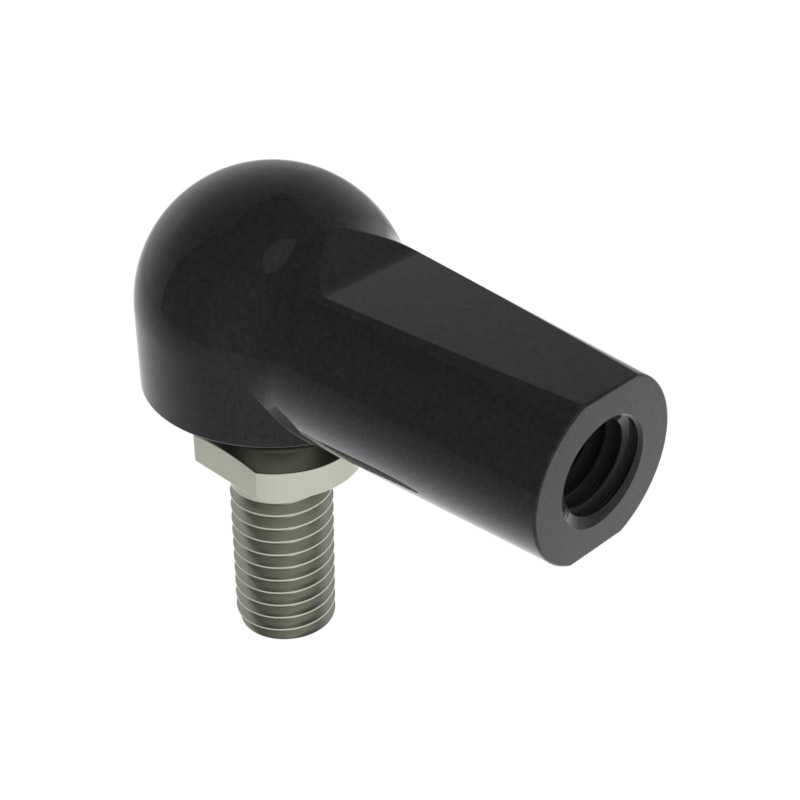

• angle joints with protection caps
  Order Example: angle joints CS 10 - M 6 zinc plated white with protection caps mounted

Materials

• Neoprene

Operation Range

• protections caps can be used from -30° to +110° C (up to +140° C for a short time).

Remarks

• Size and dimension of the angle joints DIN 71802 can be delivered with mounted protection caps if requested. Protection caps are also available as a separate component or mounted on ball pins (DIN 71803).
• The protection caps protect angle joints from dirt or water spray and they have been tried and tested in very dirty and dusty environments.
